tanuki OS

A small 16-bit Forth operating system for the x86.

About

tanuki OS is a small bare-metal operating system designed from the ground up with the philosophy of extreme software minimalism and the zeitgeist of Forth programming culture in mind. Its architecture is driven by these ideas:

• Simplicity: The design rewards highly factored, transparent code. With only a small set of powerful abstractions, one is able to build complete systems.

• Mindfulness: The restricted nature of the 8086 processor and the Forth environment enforces thoughtful use of resources available at a hardware level.

• Power: In software, usually what looks simple on the surface hides extreme complexity on the inside. Conversely, what looks daunting from the outside can reveal itself to be elegantly simple on the inside (or more horrendous out of control layers of complexity upon complexity). This OS aims to keep itself as transparent as possible, allowing the user to take full, direct control of their system.

• Extensibility: The system should be able to readily expand to meet the needs of the user across a wide variety of applications.

The Forth language gives the user all the tools necessary to abstract away from hardware and, with enough time, produce code under nearly any programming paradigm.

Alas, due to these goals, the OS is only suitable for the "power users" who are already familiar with Forth or willing to learn it. From an end-product perspective, tanuki OS is capable of producing DOS-like programs. For example, a fork of this project, Borbular, demonstrates its graphical capabilities.

The OS also has bootstrapping capabilities, allowing the user to enter more complex environments.

Features

• Bootloader: Runs on real hardware and can boot from floppy disks or USB drives.

• Forth microkernel: A minimal Forth core that is capable of expanding itself at runtime.

• Interactive REPL: Provides direct user input and evaluation.

• Block storage: 32 disk blocks for persistent storage of Forth source code and text between sessions.

• Line-based text editor: Simple yet capable editor for modifying content within block storage.

• 8086 assembler: Can be inlined within Forth words to optimize code or access hardware-specific operations.

• Disk I/O: Read and write access to floppy disks.

Installation

Ensure you have QEMU and NASM installed on your system.

To build and boot from an image, simply run:

make

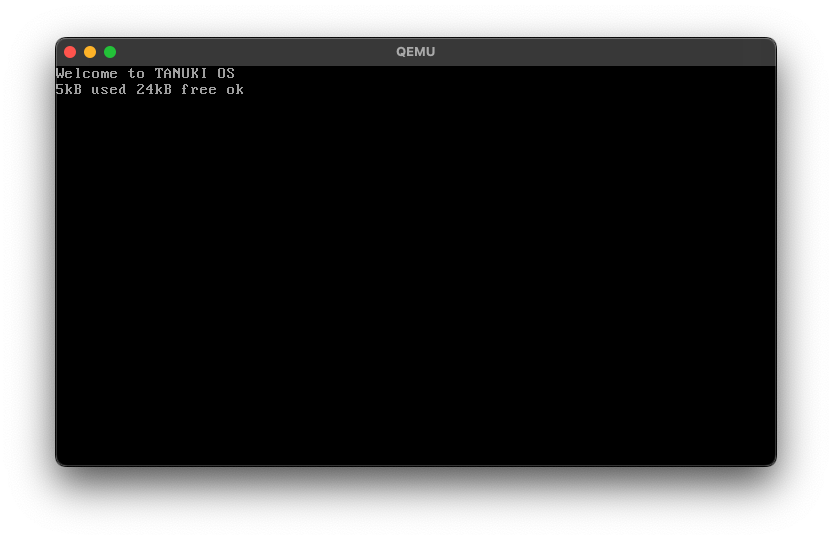

By default, the Makefile will build a floppy image and launch QEMU to interpret the raw binaries as a 5.25" 360kB floppy.

If you want to test the USB-compatible image, run:

make usb

To write the USB image directly to a physical USB drive and boot from it, the process should look something like this:

1. Insert the USB drive and identify its device path (for example /dev/sdb).

2. Unmount any mounted partitions on the USB drive.

3. Write the image: sudo dd if=hdd.img of=/dev/sdb bs=512

4. Flush pending writes: sync

5. Eject and remove the USB-drive.

Design

At the core, the kernel is a "dictionary" comprised of "words" stringed together as a linked list. When a word is read from the input stream, either from the user input or block memory, the interpreter searches backwards (from the most recently defined word) for a matching word in the dictionary. If the word is found, its "definition" is executed. Otherwise a " word not found" error is returned and the program flow is aborted.

The structure of a word laid out as such:

[name]           x bytes
[link]           2 bytes
[length + flag]  1 byte
[payload]        x bytes

Where name is the name of a word, link points the previous dictionary entry, length + flag holds the length of the name and a flag to indicate the "immediateness" of a word (whether the word get compiled or immediately executed during compilation mode).

For example, dup is defined in this manner:

db 'dup'      ; name
dw prev_addr  ; link
db 3          ; length + flag
mov ax, [bp]  ; payload
add bp, 2
mov [bp], ax
ret

After the boot process, the instruction immediately jumps to the interpret word which loops back upon itself and waits for user input. See kernel.asm under this respository for a more detailed view on how each Forth words are defined.

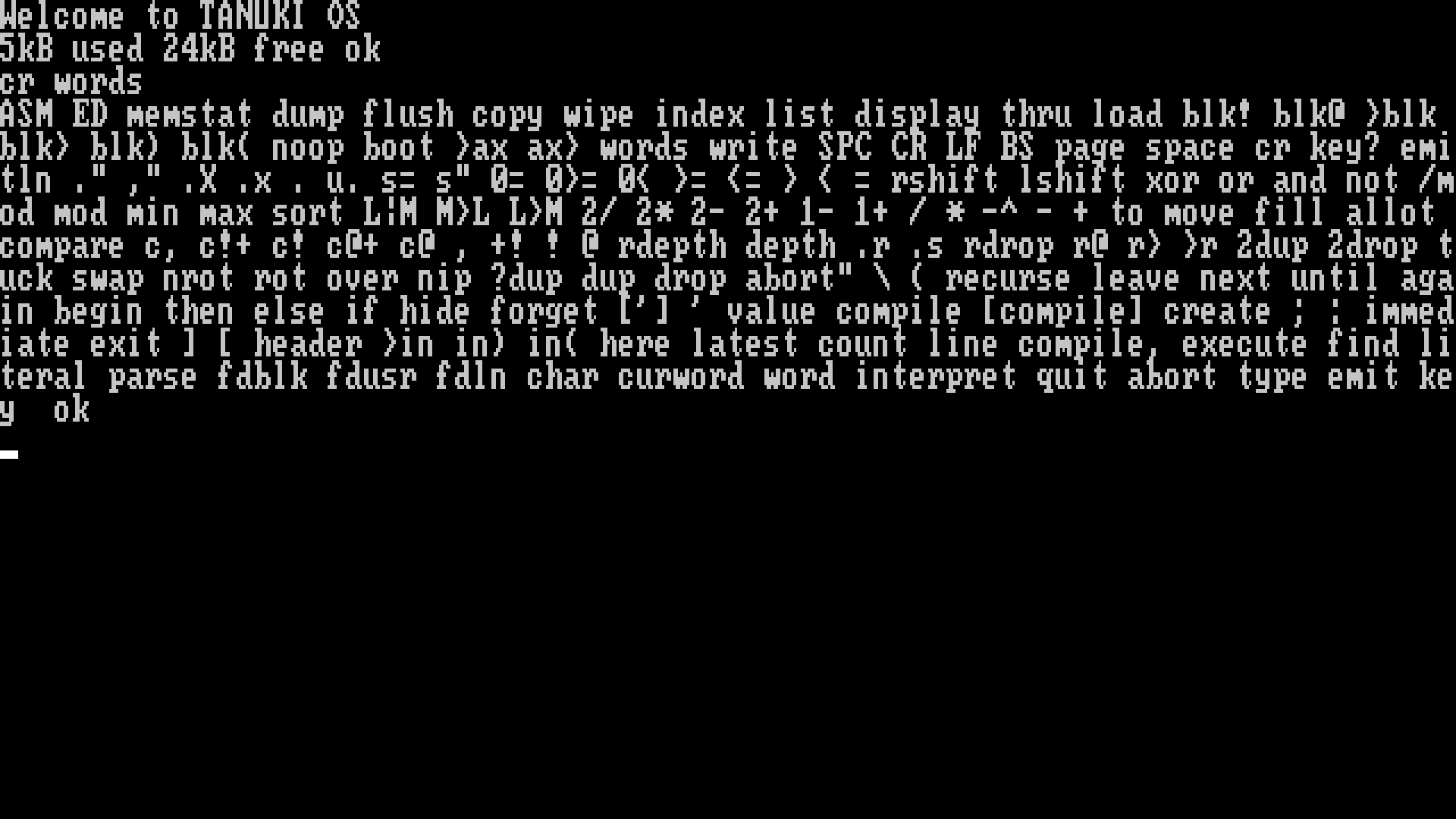

Video Demo

Name

The name "tanuki" references the Japanese raccoon dog, a creature often associated with cleverness and transformation — here a metaphor for a small system that can grow and reshape itself.

Honorable Mention

I was greatly inspired by Virgil Dupras' Collapse OS and his Tumble Forth series which helped jump start my interest in Forth and its surrounding philosophies. His influence is apparent here, especially when you compare the dictionary's word list with his Collapse OS.
